Import SHP File icon Import SHP File

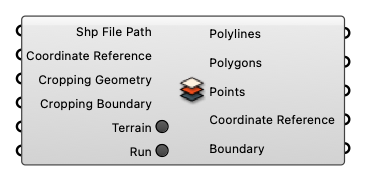

Import SHP File component

Import data from GIS shapefiles

Input

  • Shp File Path [Text]
    Shp file path (.shp)
  • Coordinate Reference [CR]
    Coordinate reference information for properly locating the geometries in the Rhino canvas
  • Cropping Geometry [Curve]
    Cropping Geometry
  • Cropping Boundary [Text]
    A string representing geographical boundary. (Use 'Geo Boundary' component to get the string)
  • Terrain [Boolean]
    If turned on, the component will try to download corresponding terrain data files into the parent folderof the user-specified file path.
  • Run [Boolean]
    Run

Output

  • Polylines [Geometry list]
    Polylines
  • Polygons [Geometry list]
    Polygons
  • Points [Geometry list]
    Points
  • Coordinate Reference [CR]
    Coordinate reference information for properly locating the geometries in the Rhino canvas
  • Boundary [Text]
    A string representing geographical boundary
