Deconstruct Boundary icon Deconstruct Boundary

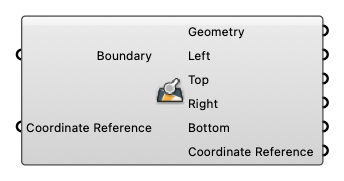

Deconstruct Boundary component

Deconstruct Boundary

Input

  • Boundary [Text]
    A string representing geographical boundary
  • Coordinate Reference [CR]
    Coordinate reference information for properly locating the geometries in the Rhino canvas

Output

  • Geometry [Curve]
    Geometry
  • Left [Number]
    Minimum longitude, left boundary.
  • Top [Number]
    Maximum latitude, top boundary.
  • Right [Number]
    Maximum longitude, right boundary.
  • Bottom [Number]
    Minimum latitude, bottom boundary.
  • Coordinate Reference [CR]
    Coordinate reference information for properly locating the geometries in the Rhino canvas
